AC90-250V NO 2-wire LM12-2004A Proximity Switch Non-flush Type 4mm Detection Distance Inductive Proximity Sensor

Name: AC90250V NO 2wire LM122004A Proximity Switch Nonflush Type 4mm Detection Distance Inductive Proximity Sensor
Brand: Kampa
Price: 3.00 USD

Wholesale AC90-250V NO 2-wire LM12-2004A Proximity Switch Non-flush Type 4mm Detection Distance Inductive Proximity Sensor from china suppliers

Model Number : LM12-2004A

Type : Inductive Proximity Sensor, Non-flush type

Place of Origin : Zhejiang, China

Brand Name : Kampa

Usage : Position Sensor

Theory : Inductance Sensor

Output : Analog Sensor

Description : Proximity Sensor

Diameter : LM12

Detection distance : 4mm

Output form : DC/SCR

Control output : DC:200mA, SCR:400mA

Current consumption : (NPN/PNP)DC12V, 8mA, DC24V, 15mA; AC<10mA

response frequency : 400Hz / 25Hz

Output voltage drop : DC(NPN/PNP)<3V, DC 2-wire<3.9V; AC<10V

Working temperature : -25 ℃ ~ 75 ℃

Shell material : Metal

Packaging Details : Package Weight: 0.50kg (1.10lb.)
Package Size: 10x10x5cm (3.94x3.94x1.97in)

Port : Ningbo/Shanghai

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 200 Pieces

Price : $3.00/Pieces 200-499 Pieces

Contact Now

Product Description

Place of Origin	Zhejiang, China
Brand Name	Kampa
Product name	Proximity Sensor
Type	Inductive type
Usage	Position Sensor
Diameter	LM12
Type	Non-flush type
Detection distance	4mm
Output form	DC/SCR
Control output	DC:200mA, SCR:400mA
Current consumption	(NPN/PNP)DC12V, 8mA, DC24V, 15mA; AC<10mA
Response frequency	400Hz / 25Hz
Output voltage drop	DC(NPN/PNP)<3V, DC 2-wire<3.9V; AC<10V
Working temperature	-25 ℃ ~ 75 ℃
Insulation resistance	≥50MΩ
Shell material	Metal
Protection grade	IP67

Specification

	Detection distance					4mm
Non-flush type	DC6-36V	NPN	NO	LM12-3004NA
						NC	LM12-3004NB
						NO+NC	LM12-3004NC
				PNP	NO	LM12-3004PA
						NC	LM12-3004PB
						NO+NC	LM12-3004PC
				2-wire	NO	LM12-3004LA
				2-wire		NC	LM12-3004LB
		AC90-250V	SCR	NO	LM12-2004A
						NC	LM12-2004B
						/	/

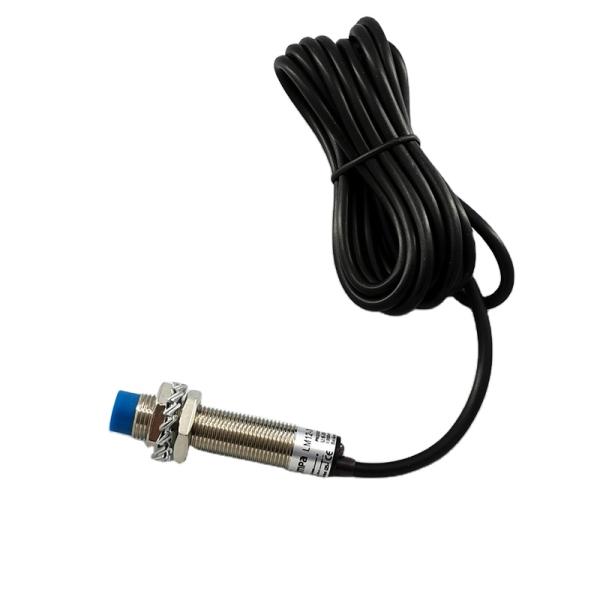

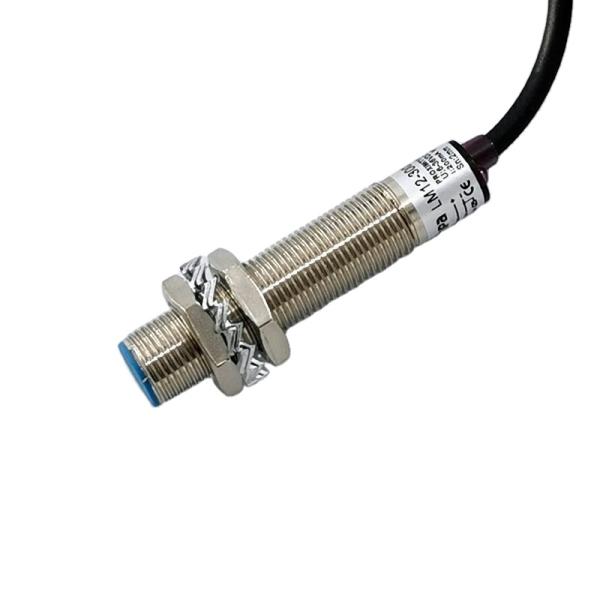

Product Show

AC90-250V NO 2-wire LM12-2004A Proximity Switch Non-flush Type 4mm Detection Distance Inductive Proximity Sensor

Packing & Delivery

Company Profile

Yueqing Kampa Electric Co., Ltd. is Established in 1990. The company supplies variety of goods,such as Relay,Circuit breaker,Switching Power Supply,Time Relay,Distribution Box,Proximity Switch, temperature controller, contactor, solid state relay, Mould Case Circuit Breaker, hour meter, electric power relay and so on. Most of them are exported to 20 countries and districts, Europe , America, Middle East, South-Eastern Asia, Africa etc.

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2009,sell to Africa(56.00%),South America(25.00%),Eastern Europe(10.00%),Southeast Asia(5.00%),Oceania(2.00%),Mid East(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solid state relay,Proximity sensor,Surge protector device

4. why should you buy from us not from other suppliers?
1. 15years' export experience. 2. We can help one electric shop to arrange the products. 3. OEM, ODM available. Quality product with Quality service. 7*24 hours standby. 4. Young sales but professional.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
